Description
Download Datasheet

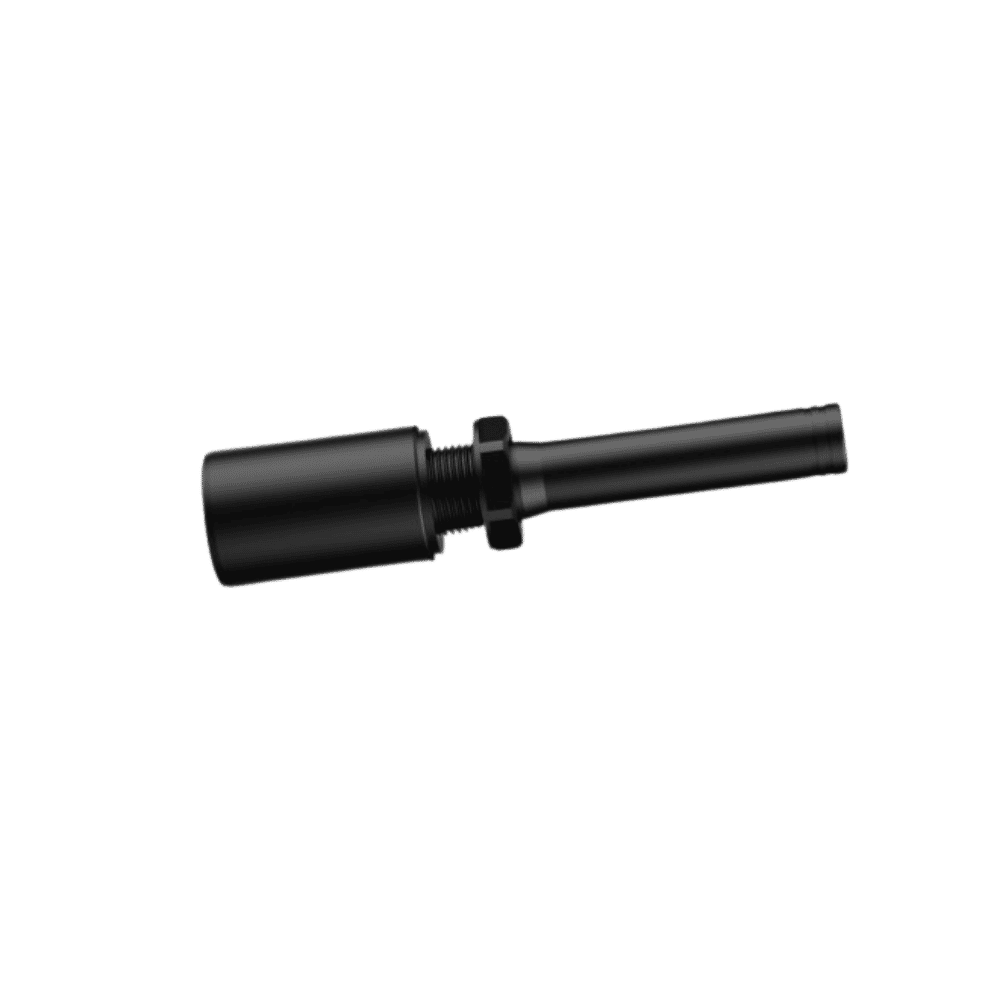

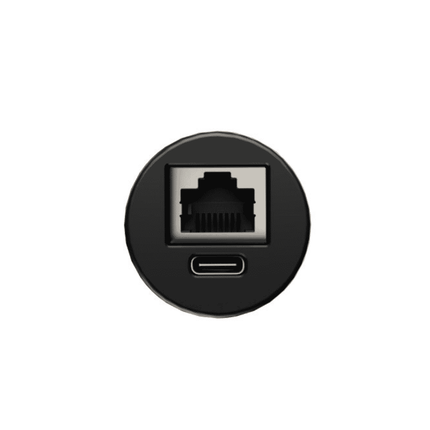

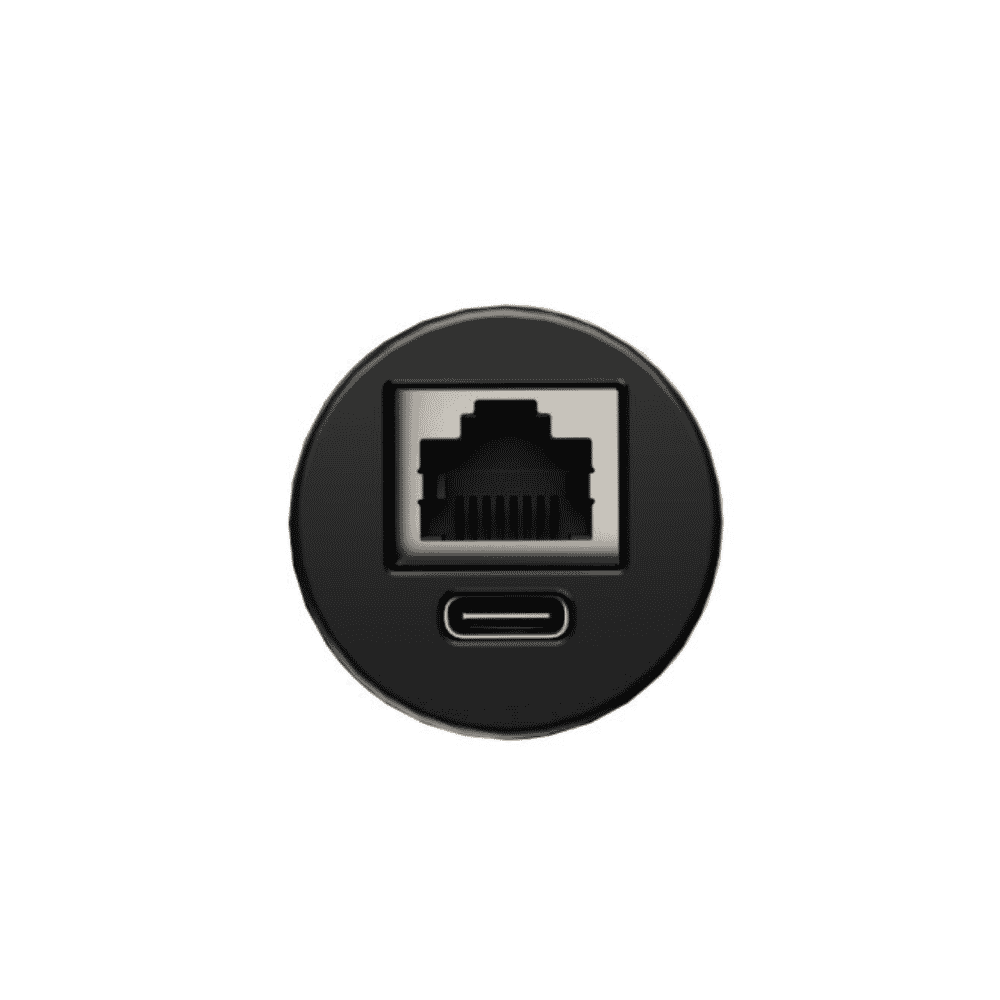

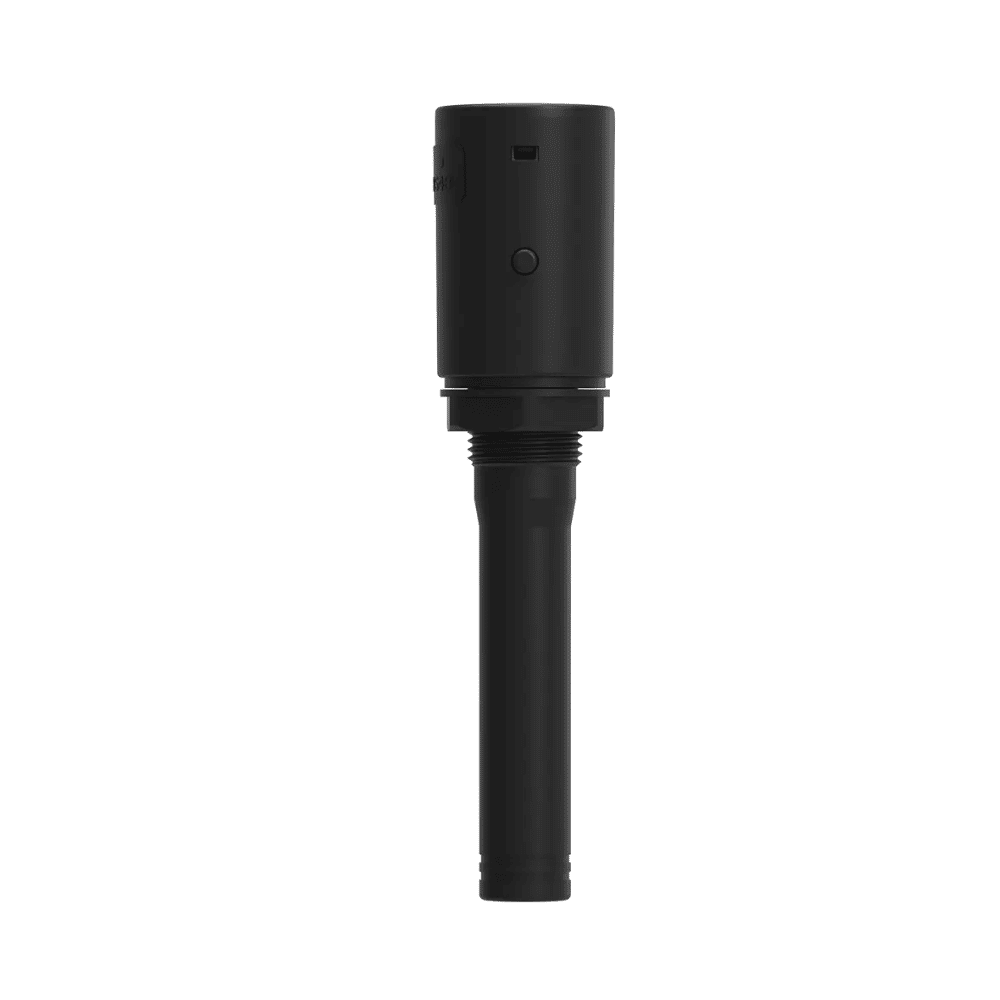

The Deye SUN-SMART-TX01 Smart Transmitter is the central communication component used to integrate Deye hybrid inverters with various smart devices within an electrical installation. It uses LoRa technology, providing low-latency wireless communication and long-range coverage.
The device supports the connection of up to 10 smart switches or sockets, two current transformers, and one electric vehicle charging station. This allows compatible devices and electrical loads to be integrated into an intelligent energy management system.
LoRa communication can operate locally without requiring a continuous internet connection. Under unobstructed conditions, the communication range can reach approximately 200 meters.
Key Features
-
Wireless communication via LoRa protocol
-
Operating frequency: 863–870 MHz
-
Integration with Deye hybrid inverters
-
Supports up to 10 smart switches or sockets
-
Supports 2 current transformers
-
Supports 1 EV charging station
-
Quick pairing with Deye hybrid inverters
-
-
Low-latency data transmission
-
Long-range wireless communication
-
Local operation, including offline mode
-
Compact dimensions and easy installation
Advantages
-
Enables the integration of multiple devices into a single energy management system
-
Helps intelligently coordinate electrical loads and available energy
-
Reduces the need for additional communication cables
-
Provides extended coverage through LoRa technology
-
Maintains local communication even without internet access
-
Compact design allows easy integration into existing installations
Recommended Applications
-
Deye hybrid photovoltaic systems
-
Smart energy management systems
-
Electrical load automation
-
Integration of smart sockets and switches
-
Circuit monitoring using current transformers
-
Integration of electric vehicle charging stations
Operating Conditions and Physical Specifications
|
Specification
|
Value
|
|
Operating Temperature
|
−40°C to +60°C
|
|
Permissible Ambient Humidity
|
0–100%
|
|
Protection Rating
|
IP20; IP65 after installation
|
|
Maximum Operating Altitude
|
≤4000 m
|
|
Dimensions
|
137.8 × 31.3 × 31.3 mm
|
|
Weight
|
45.8 g
|
|
Manufacturer's Warranty
|
2 years
|
|
Standard
|
IEC/EN 62368-1
|
