Description

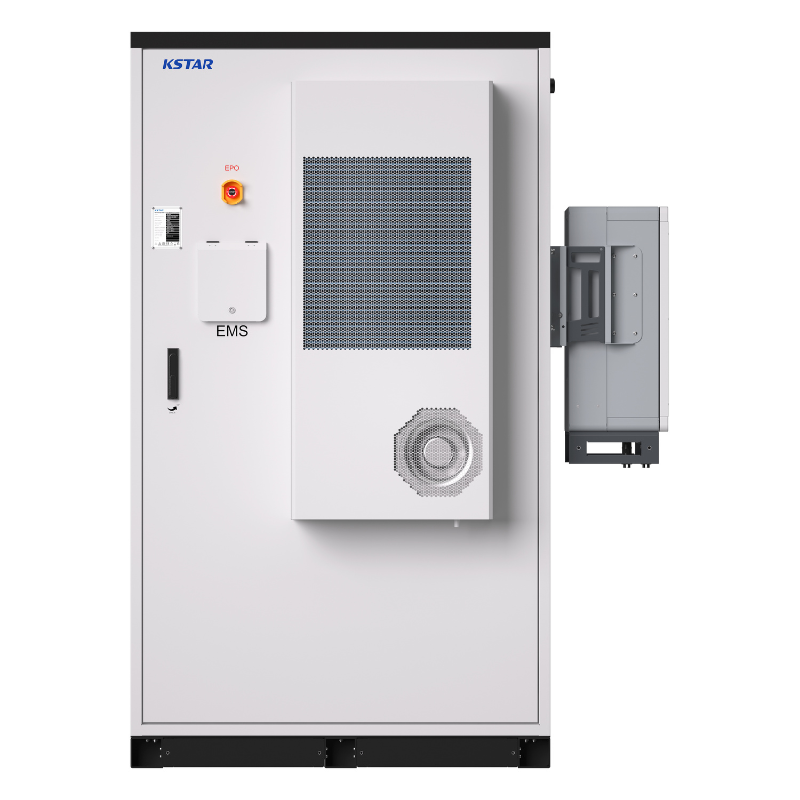

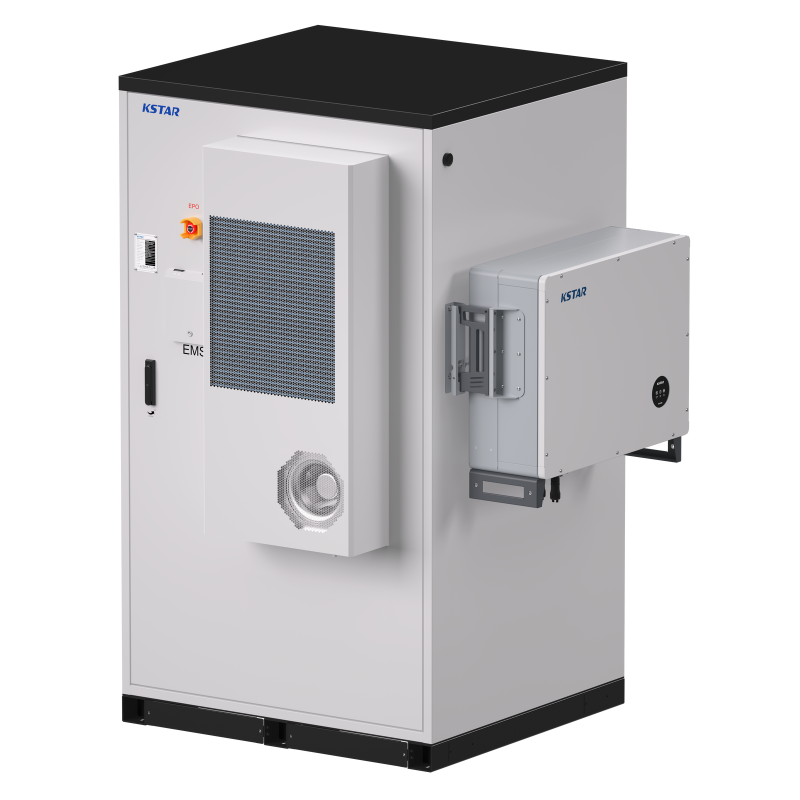

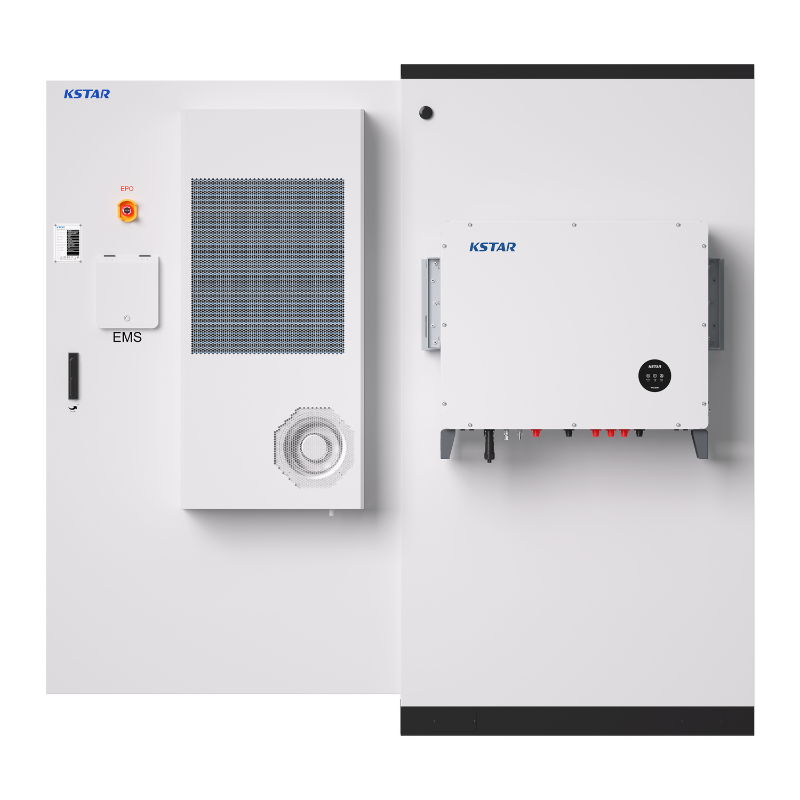

The Kstar 50 kW Inverter + 197 kWh Storage Kit is a comprehensive and efficient solution for large-scale photovoltaic installations, combining the performance of a powerful 50 kW inverter with a 197 kWh energy storage system. With IP65 protection, this kit is perfect for outdoor installation and guarantees reliable operation, even in extreme environmental conditions. It is ideal for use in commercial and industrial applications, and for prosumers looking to optimise the storage and use of solar energy.
Technical specifications:

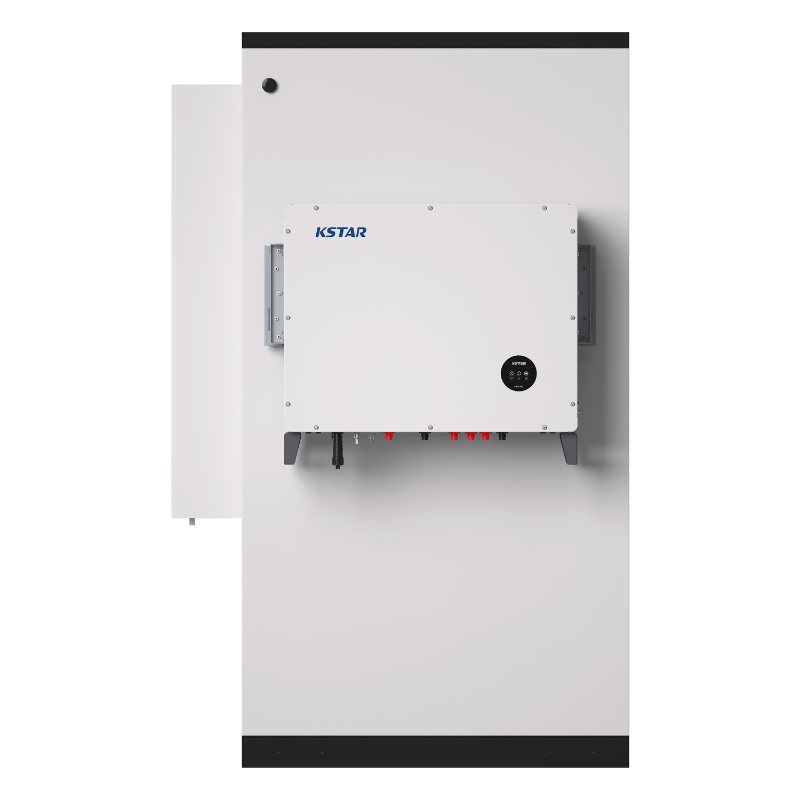

KAC500DP inverter (50 kW):
- Maximum PV input voltage: 1000 V
- MPPT range: 350 V – 800 V
- Maximum MPPT current: 36 A
- Number of MPPT tracks: 3
- Maximum battery input voltage: 750 V
- Nominal input voltage: 500 V – 750 V
- Maximum input current: 55 A x 2
- DC input power: 55 kW
- Nominal AC output power: 50 kW
- Maximum AC output power: 55 kVA
- Maximum AC current: 80 A
- Rated AC voltage: 400 V
- Efficiency: 97.5%
- Reverse connection protection, DC protection, overvoltage protection
- IP protection: IP65

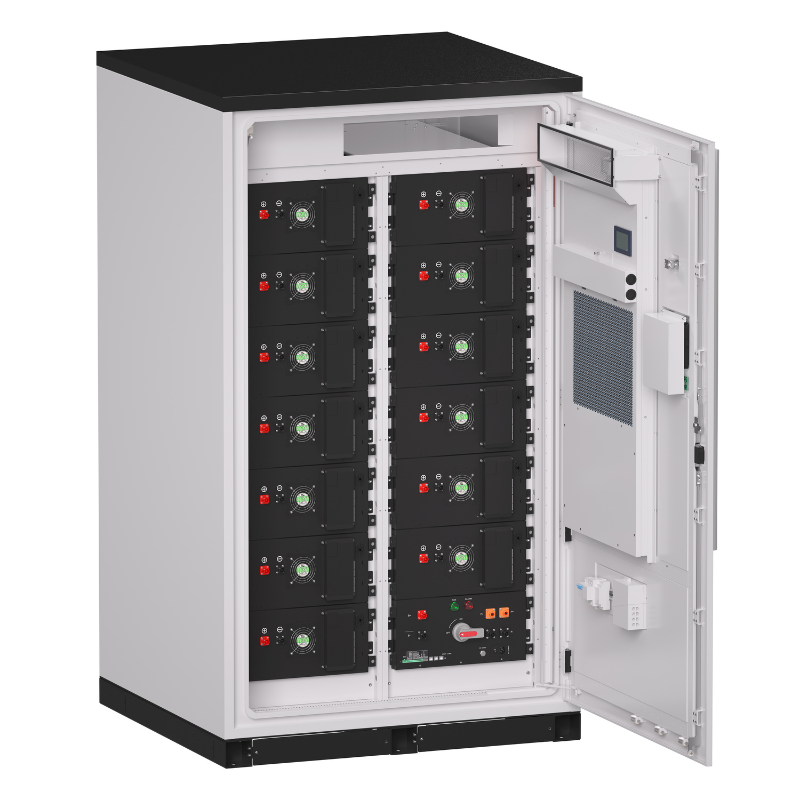

Battery storage – BC197DE:
- Battery type: LFP (LiFePO4)
- Battery capacity: 197 kWh
- Number of modules: 11
- Battery module capacity: 17.92 kWh
- Nominal voltage: 704 V
- Operating voltage range: 616 V – 792 V
- Discharge capacity: Max. 0.5 C
- IP rating: IP54
- Operating temperature: -30°C – +50°C
- Installation: Outdoor
Advantages:
-
High storage capacity: The kit includes a 197 kWh storage system, ideal for meeting the energy requirements of commercial and industrial applications, ensuring efficient energy management.
-
Efficient performance: The 50 kW inverter with 97.5% efficiency guarantees optimal use of solar energy, reducing losses and maximising yield.
-
Complete protection: IP65 protection makes this system fully dust and water-resistant, making it perfect for outdoor installation in all weather conditions. Additional protection against overvoltage and incorrect connections ensures safe and reliable operation.
-
Quick and easy installation: Thanks to its easy-to-install design, this kit can be put into operation quickly, saving time and installation costs.
-
Durability and reliability: The kit is designed to withstand extreme weather conditions, with an operating temperature range of -30°C to +50°C, ensuring consistent performance even in challenging environments.
The Kstar 50 kW Inverter + 197 kWh Storage Kit is the ideal solution for large-scale photovoltaic projects requiring both energy generation and efficient storage. With a robust design, IP65 protection and top-tier performance, this system ensures optimal use of solar energy and low long-term energy costs, making it perfect for commercial and industrial applications.
