Description

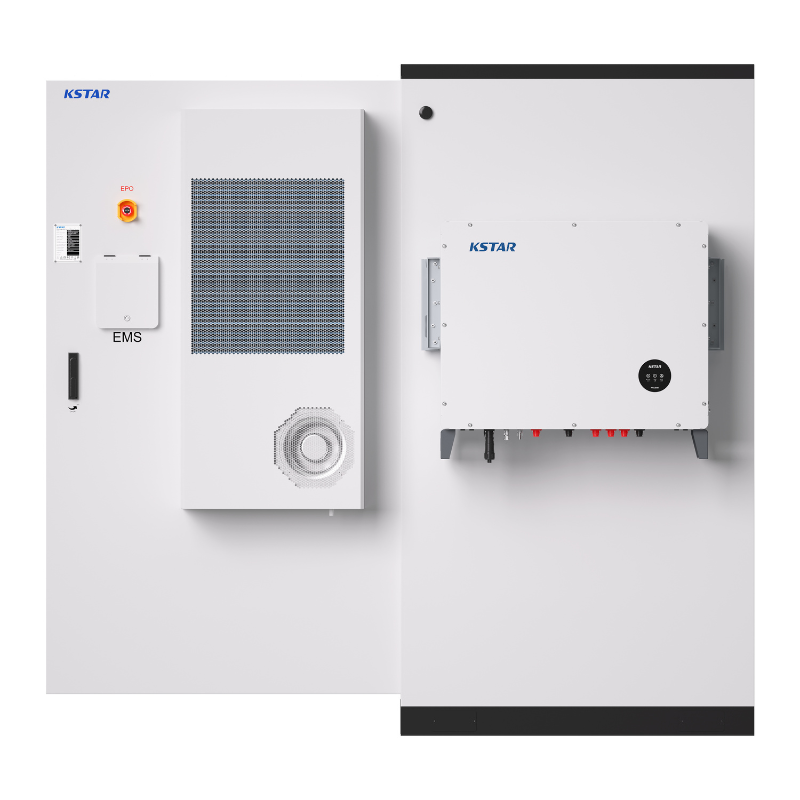

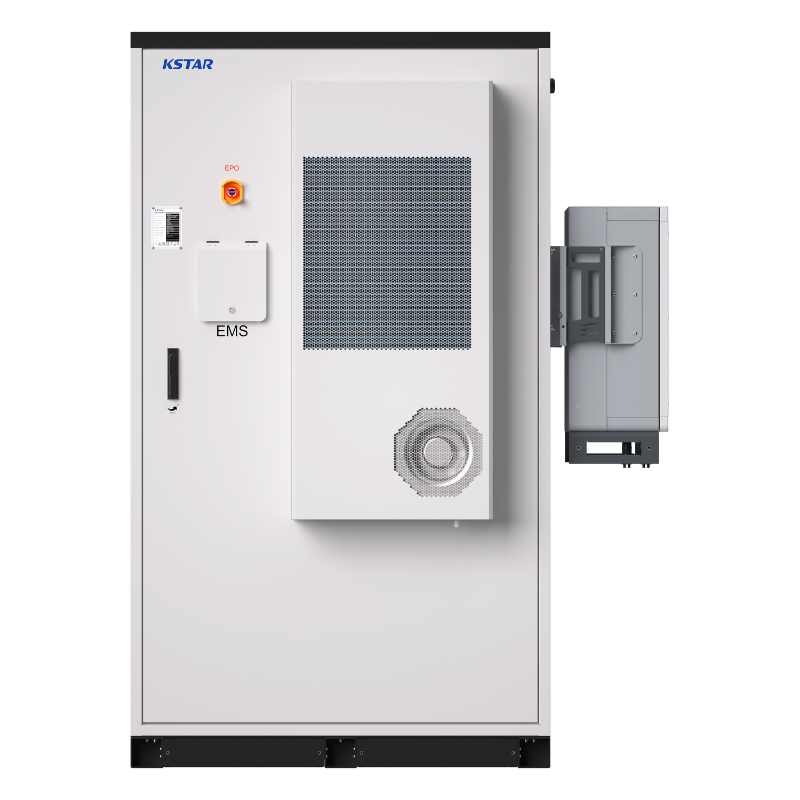

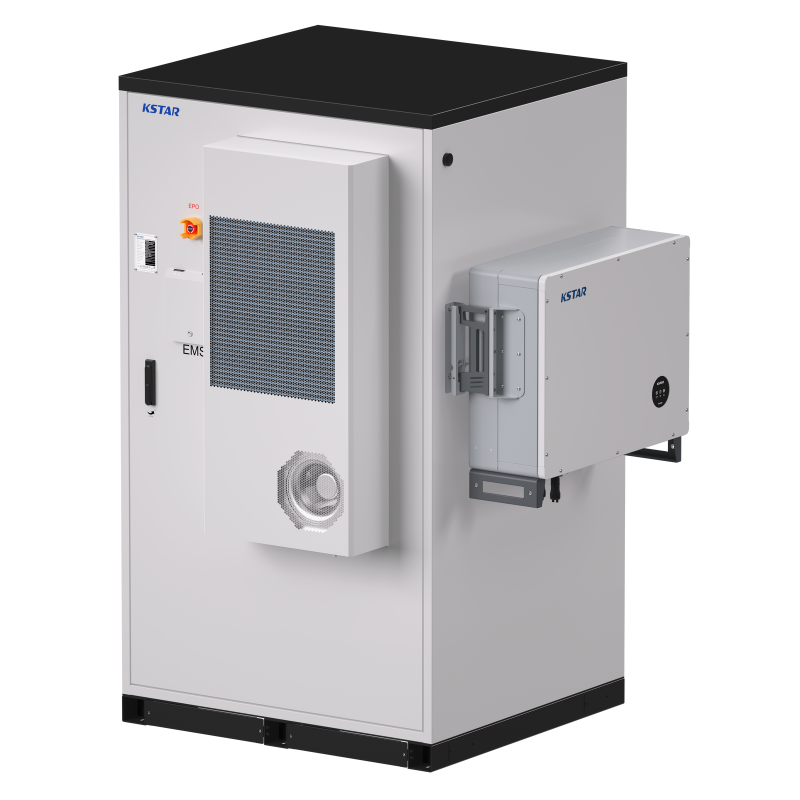

The 125 kW Inverter + 215 kWh Storage Kit from Kstar is an advanced and reliable solution for large-scale photovoltaic installations, offering exceptional performance and efficiency. Designed to meet the demands of the most demanding projects, this photovoltaic energy storage system combines a powerful 125 kW inverter with a storage capacity of 215 kWh, making it ideal for use in commercial and industrial environments. With IP65 protection, this kit can be safely installed outdoors, ensuring optimal long-term operation, even in extreme weather conditions.
Technical specifications:

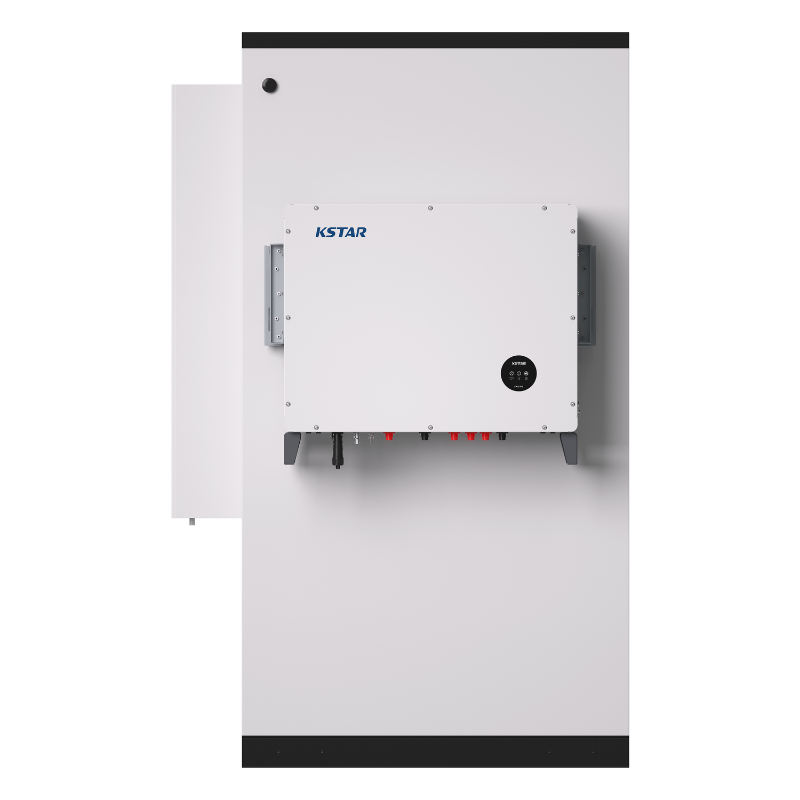

KAC120D inverter (125 kW):
- Maximum PV input voltage: 1000 V
- Minimum input voltage: 580 V
- Nominal operating voltage: 580 V – 1000 V
- Maximum input current: 322 A
- Maximum DC input power: 134 kW
- Number of DC inputs: 1
- Nominal AC output power: 120 kW
- Maximum AC output power: 132 kVA
- Maximum AC current: 191 A
- Rated AC voltage: 400 V (±15% of 10%)
- Efficiency: 98.5%
- Reverse connection protection, DC protection, overvoltage protection
- IP protection: IP65

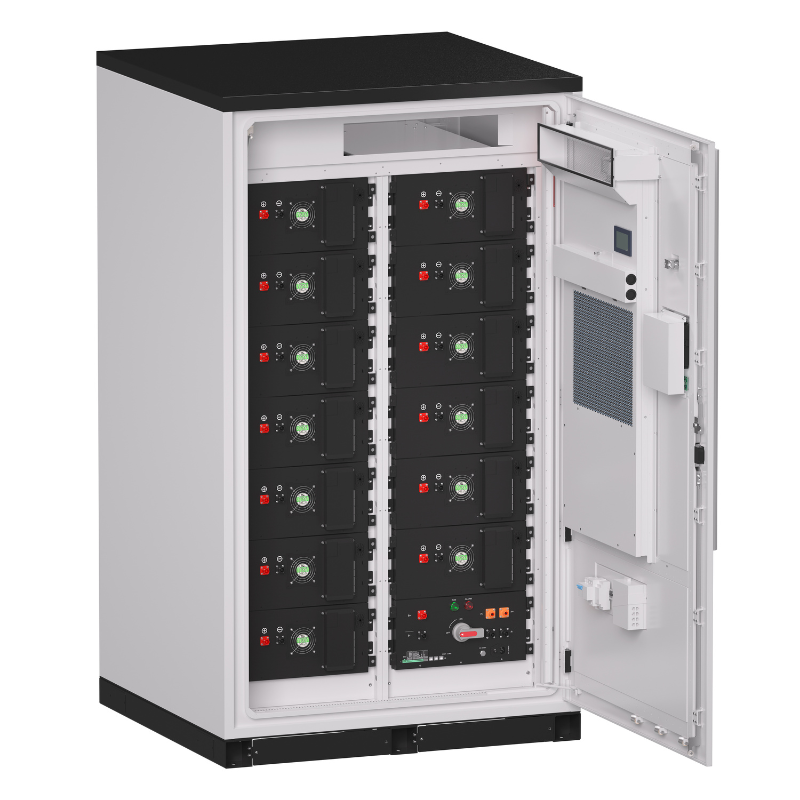

Battery storage – BC235DE:
- Battery type: LFP (LiFePO4)
- Battery capacity: 215 kWh
- Number of modules: 12
- Battery module capacity: 17.92 kWh
- Nominal voltage: 768 V
- Operating voltage range: 672 V – 864 V
- Discharge capacity: Max. 0.5 C
- IP rating: IP54
- Operating temperature: -30°C – +50°C
- Installation: Outdoor
Advantages:
-
High performance: This kit offers a total power output of 125 kW for photovoltaic energy generation and 215 kWh for energy storage, making it ideal for large commercial and industrial applications where energy requirements are significant.
-
Maximum efficiency: The inverter has an efficiency of up to 98.5%, ensuring fast and efficient conversion of solar energy into usable electricity, reducing energy losses.
-
Complete protection: With IP65 protection, the system is fully dust and water resistant, making it perfect for outdoor installation, regardless of weather conditions. Furthermore, additional protection against overvoltage and incorrect connections ensures safe and reliable operation.
-
Easy installation: Thanks to its intuitive design, installing the system is quick and simple, thereby reducing the costs and time required for commissioning.
-
Durability in extreme conditions: The kit can operate within a temperature range of -30°C to +50°C, making it ideal for areas with extreme climates, ensuring consistent and reliable performance.
The 125 kW Inverter + 215 kWh Storage Kit from Kstar is the ideal solution for efficient energy management in a large-scale photovoltaic installation. With excellent performance, IP65 protection and high storage capacity, this system is perfect for maximising the use of solar energy and reducing operational costs, making it an excellent choice for commercial and industrial projects.
